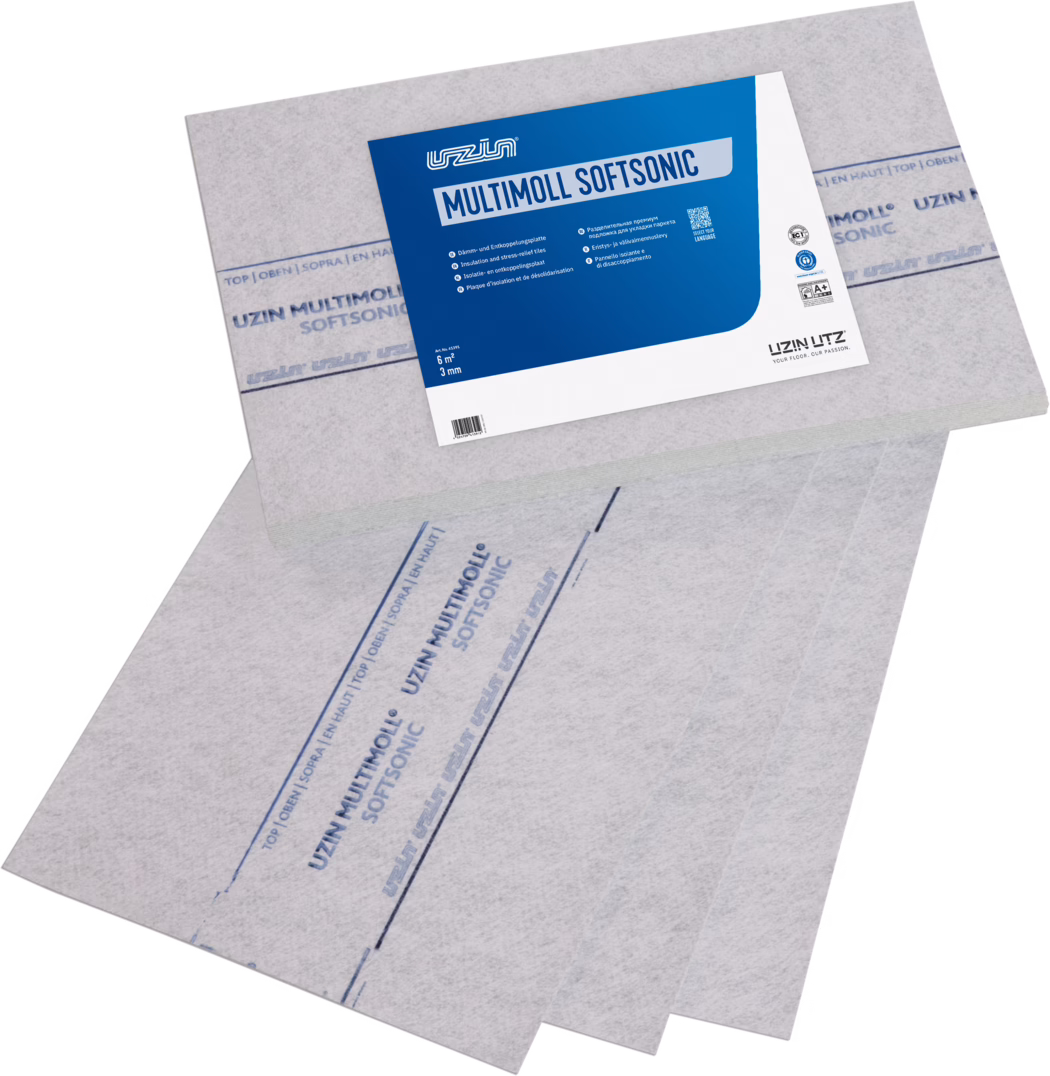

UZIN Multimoll Softsonic 3 mm Insulating and Stress-Relieving Underlay
Acoustically insulating, stress-relieving underlay with minimal thickness for bonded wood flooring
- 3-in-1: decoupling, footstep and ambient insulation
- easy to install
- bridges cracks / hairline cracks
- better walking and living comfort
Applications
Main application area:
Acoustic insulating and stress-relieving sheet underlay for solid wood flooring, multi-ply wood flooring and laminate flooring. For adhered installation under bonded solid and pre-finished wood flooring, or for loose installation under laminate or pre-finished wood flooring laid as a floating floor system.
Downloads
Technical data
| Packaging | carton |
|---|---|
| Sizes | carton with 16 sheets = 6 m² |
| Shelf life | 36 months |
| Colour | white / grey |
| Tile format | 0.5 m x 0.75 m = 0.375 m² |
| Area weight | approx. 3.0 kg/m² |
| Thickness | approx. 3 mm |
| Thermal transmittance value | 17.036 W/m²K** |
| Heat transfer resistance | 0.0587 m²K/W** |
| Minimum application temperature | 15 °C at ground level |
| Impact sound reduction | approx. 14 dB* |
| Buidling material class | B2 *** |
Ordering information
| Article | Article number | Shipping unit |
|---|---|---|
| UZIN Multimoll Softsonic 3 mm | 41391 | Pallet : 480 |
